How to Build a Python-Based Model Execution Framework for Treasury Analytics

I’ve seen plenty of analytics pipelines start the same way. A few Python scripts, a scheduled cron job, and possibly a manual notebook run when a report is required are the starting points. At first, everything worked fine. The models run, the outputs look correct, and the system feels simple enough to manage.

But as more models get added, liquidity forecasts, stress testing, and risk simulations, the pipeline slowly turns into a fragile chain of scripts. One failure breaks everything downstream, debugging becomes painful, and reproducing historical results becomes nearly impossible.

Eventually, a simple question arises: “Is it possible to rerun the model precisely as it performed last month?” And the honest answer is usually “not easily.” The problem usually isn’t the financial models themselves. It’s the lack of proper execution infrastructure and controls around them.

In this article, we will explore how to design a Python-based model execution framework for treasury analytics workloads that improves reproducibility, scalability, and maintainability.

Why Script-Based Analytics Pipelines Break

Script-driven pipelines are common in early-stage analytics systems. They are quick to implement and require minimal infrastructure. However, treasury analytics workloads grow rapidly, and simple pipelines begin to show their limitations.

Fragile Model Dependencies

Treasury analytics often involves multiple models that depend on each other. For example:

• Each stage depends on the outputs from the previous stage.
• Without orchestration, these dependencies turn into fragile chains of scripts. If one model fails, the entire pipeline breaks.
• Troubleshooting becomes slow because there is no centralized execution tracking and logging.

Execution frameworks explicitly define dependencies and manage the order in which models run to solve these problems.

Reproducibility Challenges

Another common issue is reproducibility. Analytics pipelines frequently evolve due to the following:

• Models get updated
• Parameters change
• Datasets are refreshed

If these changes are not tracked systematically, it becomes extremely difficult to reproduce historical results. For financial institutions, this is more than an inconvenience. Reproducibility is often required for internal validation, regulatory reviews, and audit processes.

An execution framework helps maintain reproducibility by tracking:

• Model versions
• Dataset versions/vintage dates
• Execution parameters
• Execution timestamps

Limited Scalability

Treasury analytics often requires running models across many combinations of portfolios, scenarios, and time horizons. For example, a stress testing exercise may require running the same model across hundreds of simulated market conditions. Sequential script execution becomes inefficient in these cases. An execution framework enables parallel or distributed runs, significantly reducing runtime.

Lack of Observability

Another challenge with ad-hoc pipelines is limited visibility. When failures occur, teams may not know:

• Which model failed?
• What data/lack of data triggered the failure?
• How long did the model run?
• Whether outputs were successfully stored?

Execution frameworks simplify problem diagnosis and operational dependability with systematic logging and monitoring.

Treasury Analytics Workloads in Practice

Treasury analytics platforms typically run several categories of computational workloads. Understanding these patterns helps guide architecture decisions.

Batch Model Execution

Many treasury models operate on scheduled intervals, such as:

• Daily liquidity forecasts
• Weekly exposure calculations
• Monthly stress testing exercises
• Annual back-testing

These batch jobs analyze large financial datasets for treasury and risk departments. They need reliability and repeatability due to their schedule.

Chained Model Pipelines

Some models depend on upstream outputs. For example:

Market Data + Position Data → Volume Forecast Model → Portfolio Aggregation

This dependency structure naturally forms a directed acyclic graph (DAG). Execution frameworks can interpret this DAG structure and ensure models run in the correct order.

Scenario and Sensitivity Simulations

Scenario analysis is common in treasury analytics. Teams may simulate economic conditions such as:

• Interest rate shocks
• Currency volatility
• Liquidity stress scenarios

Each scenario requires separate model runs. Multiply that by several portfolios and time horizons, and computational demand grows quickly. A well-designed execution framework allows these workloads to scale efficiently.

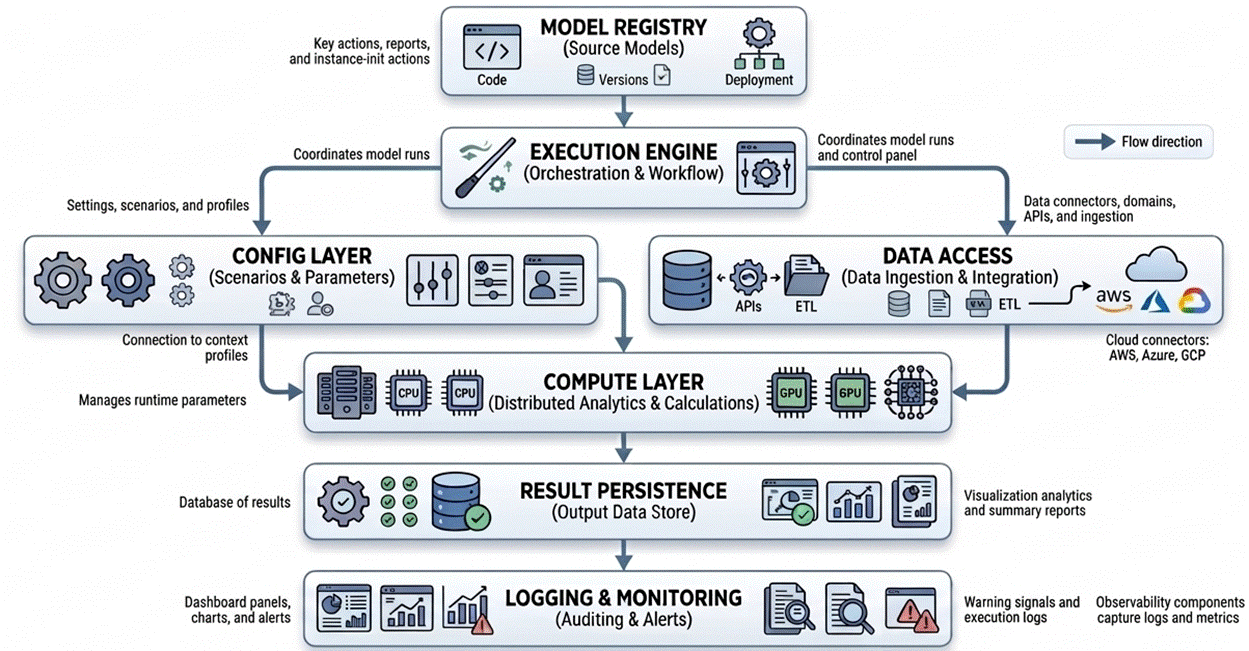

Architecture Overview

This architecture separates model logic from orchestration and infrastructure, letting models focus on analytics while the framework executes and monitors them.

Each component serves a specific purpose:

• Model Registry stores metadata about available models (example: Model Name, ID, Version etc.)
• Execution Engine coordinates model runs
• Configuration Layer manages runtime parameters (example: run date, scenario name etc.)
• Data Access Layer retrieves datasets from upstream systems (example: connection details, query definitions etc.)
• Compute Layer runs the calculations to produce outputs (example: cashflow engine etc.)
• Persistence Layer stores outputs and execution metadata (example: model outputs, DQ checks etc.)
• Observability Components capture logs and operational metrics

Step 1: Define a Standard Model Interface

The first step in building the framework is defining a consistent interface for models. Without a standard interface, each model requires custom execution logic. Python’s abstract base classes provide a simple way to enforce structure.

python

from abc import ABC, abstractmethod
class BaseModel(ABC):
  @abstractmethod
  def ingest_data(self, data_layer):
    pass
  @abstractmethod
  def preprocess(self, data):
    pass
  @abstractmethod
  def compute(self, processed_data):
    pass
  @abstractmethod
  def generate_output(self, results):
    pass
  @abstractmethod
  def shutdown(self, logger):
    pass

Each model follows the same lifecycle:

1. Ingest required data
2. Preprocess inputs
3. Run the core computation
4. Generate structured outputs
5. Close the model run (e.g. printing end of model run message, closing log files, flushing buffered data etc.)

Step 2: Organize Models as Python Packages

As the number of models grows, organizing the codebase becomes increasingly important.

Example repository structure:

treasury-framework/
  models/
    liquidity_model/
    stress_test_model/
    risk_aggregation_model/
  core/
    base_model.py
    registry.py
  data/
    ingestion.py
    validation.py
  execution/
    engine.py
  config/
    loader.py

Shared utilities often include:

• Data validation routines
• Database connectors
• Financial time-series transformations
• Date utilities
• Log generation

Step 3: Implement a Model Registry

A model registry provides a centralized catalog of available models.

Each entry typically includes:

• Model name
• Version
• Package dependencies and versions
• Input data schema
• Configuration templates

Example registry entry:

yaml

model_name: loan_prepayment_projection
version 1.0
package_dependencies:
  - pandas 2.3.2
  - numpy 2.3.3
input_schema: prepayment_schema_v1

The execution engine queries the registry to dynamically load models. Registries also support version control, allowing teams to rerun historical model versions when required.

Step 4: Configuration-Driven Execution

Hardcoding parameters inside the model code quickly becomes difficult to manage. Instead, execution parameters should be externalized into configuration files.

Example:

execution:
  portfolio_id: loan_new_volume
  scenario: base
  mev_vintage_date: 2026-03-31
  run_date: 2026-04-01

data:
  market_data_source: vendor_feed
  lookback_days: 365

model_parameters:
  liquidity_threshold: 0.1

Configuration-driven execution provides:

• Reproducible runs
• Easier scenario testing
• Cleaner model code

Step 5: Implement a Data Access Layer

Models should avoid direct database queries. Instead, a data access layer should encapsulate upstream systems to get data.

python

class DataAccessLayer:
  def get_market_data(self, start_date, end_date):
    pass

  def get_portfolio_positions(self, portfolio_id, as_of_date):
    pass

This abstraction ensures consistent data formatting and allows storage systems to evolve without breaking model implementations.

Step 6: Build the Execution Engine

The execution engine orchestrates the model lifecycle.

python

class ExecutionEngine:
  def int(self, registry, data_layer, utility):
    self.registry = registry
    self.data_layer = data_layer
    self.logger = utility.logger
    self.config = utility.config

def run(self, model_name):
  model_cls = self.registry.get(model_name)
  model = model_cls(self.config)
  data = model.ingest_data(self.data_layer)
  processed = model.preprocess(data)
  results = model.compute(processed)
  run_id = self.persist_results(model_name, results)
  return run_id

In production systems, the execution engine may also manage:

• Job scheduling
• Dependency resolution
• Parallel execution
• Retry logic

Example: A Simple Loan Volume Projection Model

To illustrate how models integrate with the framework, consider a simplified Loan New Volume projection model. The example below estimates the amount of new loans that will be originated in a year. While real treasury models involve far more complex calculations, the example demonstrates how model logic fits into the execution framework.

python

class NewVolumeModel(BaseModel):
  def ingest_data(self, data_layer):
    portfolio = data_layer.get_loan_positions("treasury_loan_portfolio", "2025-12-31")
    market_data = data_layer.get_market_data("2025-01-01", "2025-12-31")
    return portfolio, market_data

   def preprocess(self, data):
      portfolio, market_data = data
      return portfolio, market_data

  def compute(self, processed_data):
    portfolio, market_data = processed_data
    target_ratio = 0.54
    new_volume = portfolio["previous_month_balance"].sum() * target_ratio
    return{
      "new_volume": new_volume
    }

  def generate_output(self, results):
    return Results

A model run might look like this:

python

engine.run(
  model_name = "loan_volume_projection",
  config = "configs/volume_scenario.yaml"
)

The framework records a run ID, ensuring outputs remain traceable and reproducible.

Scaling Model Execution

As workloads grow, the framework should support scalable execution strategies.

Parallel Portfolio Execution

Independent model runs can execute simultaneously across portfolios:

Portfolio A → Model Run

Portfolio B → Model Run

Portfolio C → Model Run

This significantly reduces total runtime.

Efficient Data Processing

Large financial datasets can strain memory. Libraries such as Polars provide faster dataframe operations and improved memory efficiency compared to traditional Pandas workflows.

Observability and Monitoring

Reliable analytics platforms require strong observability.

Structured Logging

Logs should capture:

• Model name
• Run ID
• Vintage dates
• Parameters used
• Execution status

Execution Metrics

Metrics may track:

• Execution duration
• Memory usage
• Dataset sizes

Model Governance and Reproducibility

Financial analytics platforms must support strong governance practices. Execution frameworks should track:

• Model versions
• Configuration parameters
• Dataset versions
• Execution timestamps

This metadata creates a full audit trail, allowing teams to reproduce historical model runs when needed.

Conclusion

Analytics teams may develop scalable, dependable analytics infrastructure by structuring model execution around registries, configuration layers, and orchestration engines, replacing brittle script-based workflows. Treasury analytics are becoming more complex. Modern financial platforms require dependability, scalability, and governance, which simple scripts cannot supply.

A practical approach is to start small. Begin by registering a few models and implementing a simple execution engine. Gradually introduce configuration-driven execution. Eventually, this system can enable large-scale simulations, forecasting models, and advanced financial analytics on a treasury analytics platform.
